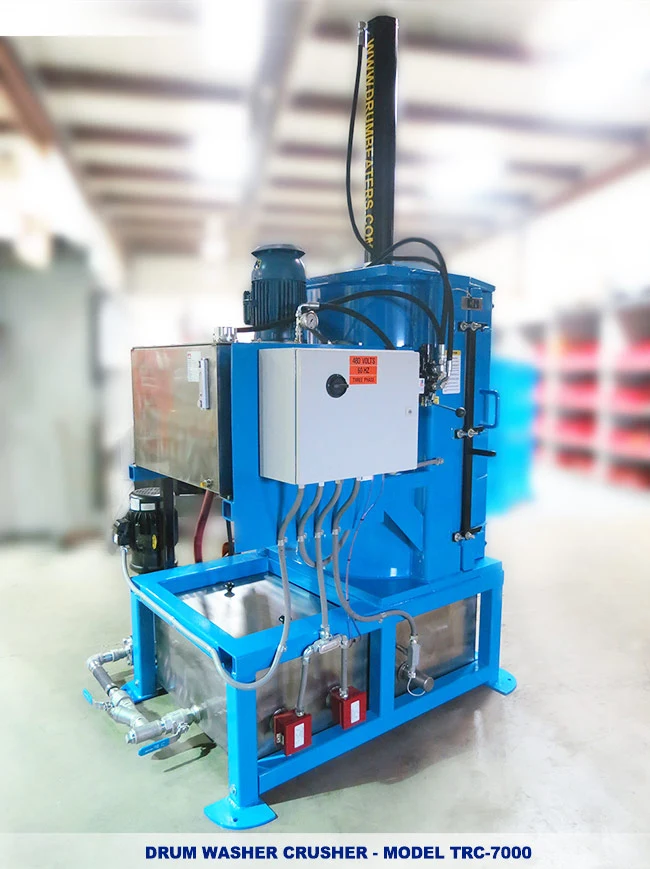

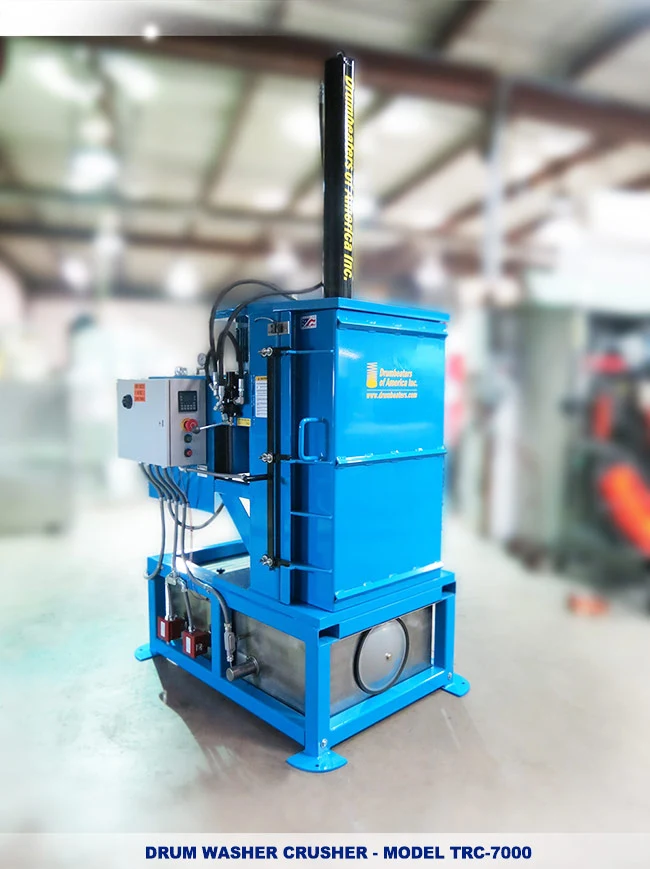

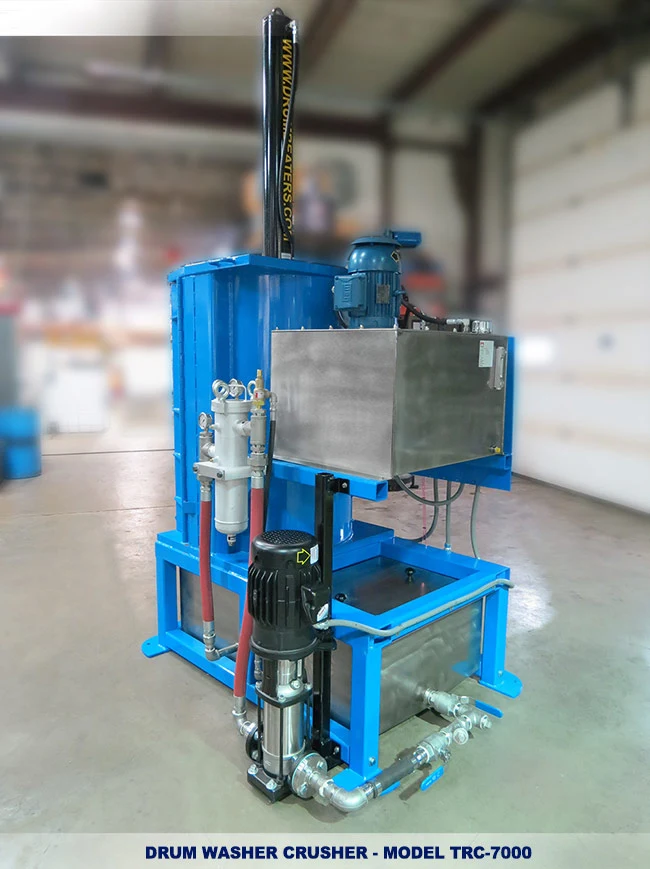

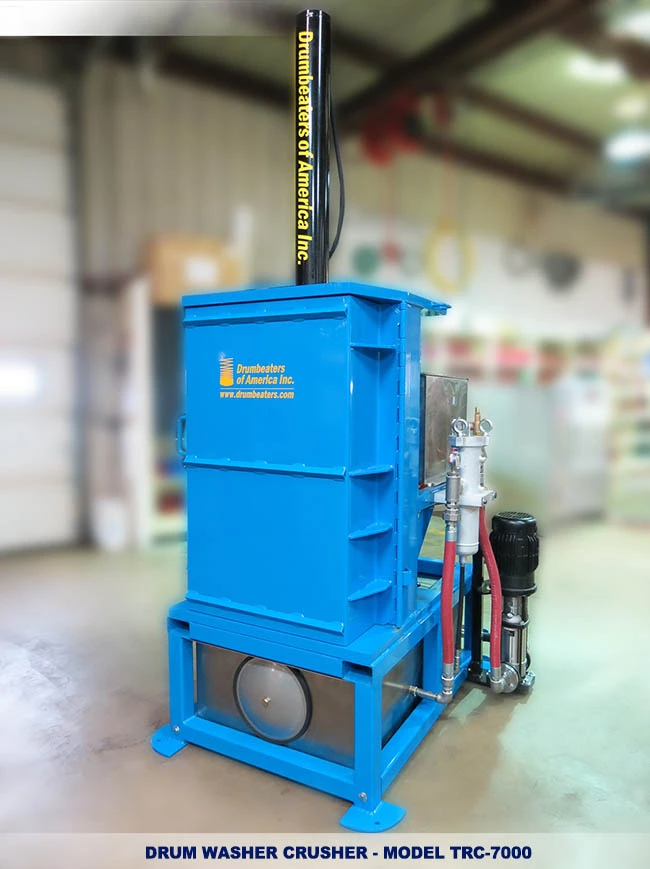

Drum Washer Crusher Model TRC-7000

The Drum Washer Crusher Model TRC-7000 is a dual purpose machine. It can be used to wash drums or/and to crush the drum in the same chamber.

This system uses a high speed rotary nozzle for washing 100% of the interior of the drums. The TRC-7000 will crush a 55 gallon drum down to 2.5" in height greatly reducing storage space requirements and transport fees. The drum station is protected by a safety system to prevent the operator from activating a station when a drum is removed prior to the wash/crush cycle being finished.

All hydraulic, plumbing and electrical connections between the equipment components are included and based on the location of the equipment components.

This equipment is completely pre wired, pre plumbed, fully tested, and ready for operation. We build the equipment with engineered electrical plug connections and easy to assemble hoses for simple and easy installation.

The TRC-7000 model includes an internal recirculation tank system with 120 gallons capacity. You can increase the washing-crushing rate/performance by adding and external tank recirculation system (250, 500 or 1000 gallon capacity).

Brochure


Standard Features

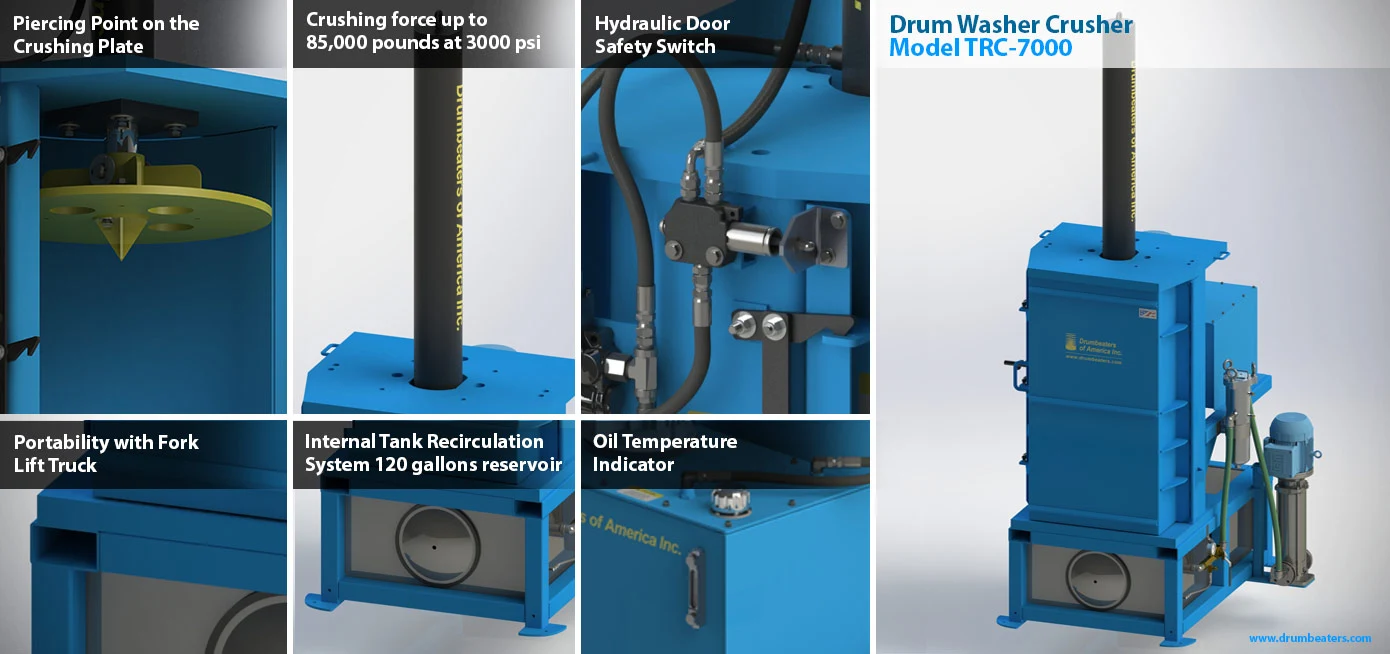

  • Compaction force from 70,000 pounds to 85,000 lbs
  • Piercing point on the crushing plate
  • Washes upto 55 gallon drums (steel and plastic)
  • Washes close top and open top drums (interior)
  • Can use water, detergent or solvent

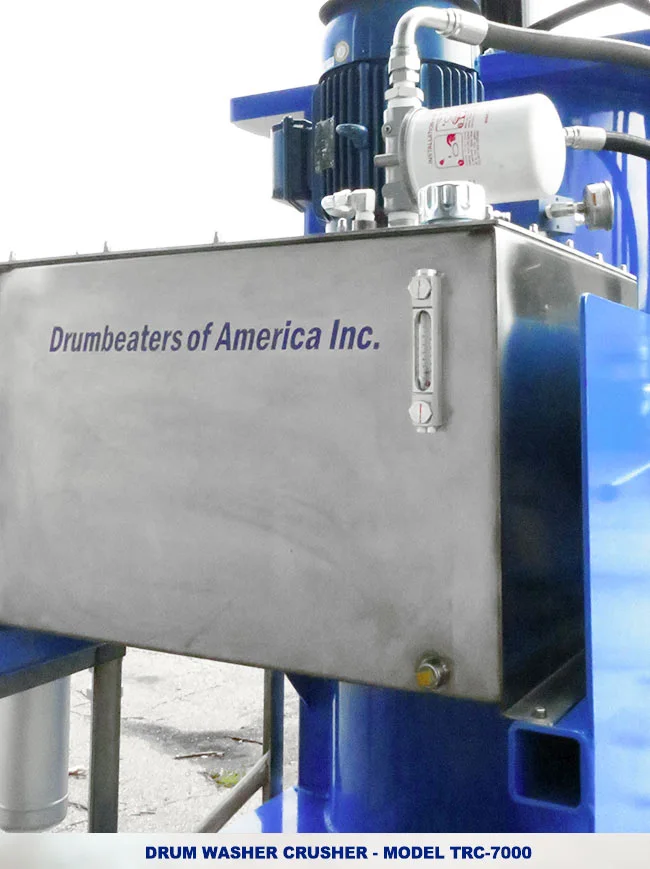

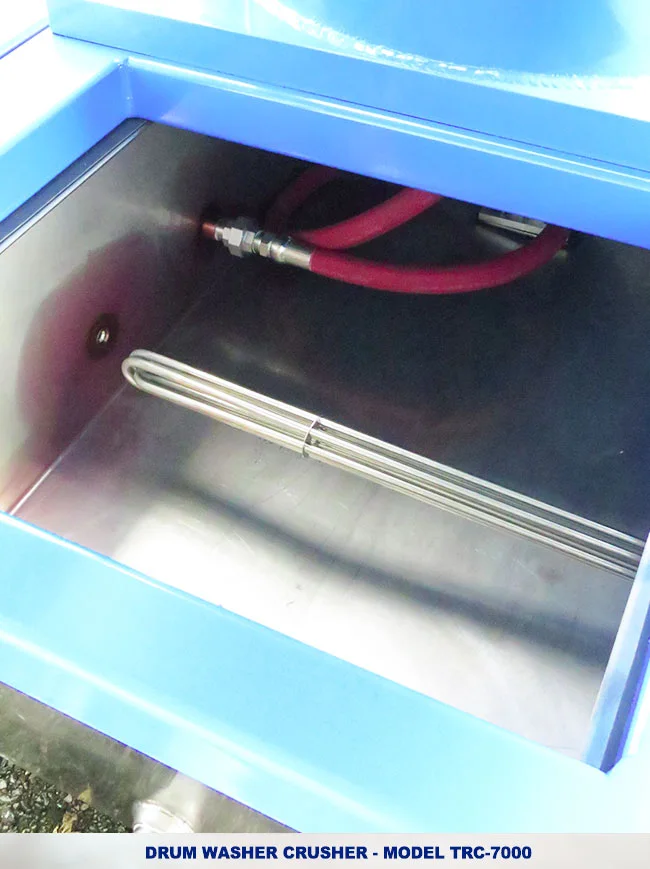

  • Internal Tank Recirculation System with 120 gallons reservoir
  • Stainless Steel construction
  • Fully Adjustable Wash Timer. (1 sec. to 66 hours)
  • Push Button On/Off Controls
  • Stainless Steel Pressure Building Stack Pump
  • Portability with Fork Lift Truck
  • Electrical control box Nema 4 Wash Down
  • 220/ 440 volt, 3 phase 60/ 50 hertz
  • Safety features to comply with OSHA
  • Heavy duty construction, all structural components are made with steel.

Optional Features

  • Explosion Proof System: When you have a hazardous area
  • Chamber for 85 gallon drum: Chamber enlarged for crushing 85 gallon drum
  • Vent Fan: Heavy-duty Vents Fan. Custom & Std. sizes available
  • Hepa Filter: This type of air filter can remove at least 99.97% of airborne particles 0.3 micrometers (µm) in diameter
  • Galvanized Finish: Protective coating of zinc to provide corrosion resistance
  • External recirculation tank 250 gal capacity.
  • External recirculation tank 500 gal capacity.
  • External recirculation tank 1000 gal capacity.
  • Two (02) 10,000 watt electric immersion heaters for the recirculation tank to provide hot water.
  • Special cover to control fumes and/or retain heat if water is heated.
  • Oil Recovery Skimmer System for the 1000 gallons tank recirculation system.
  • Multi Media Filtration System (MMF).
  • Additional wash/crush stations (one, two, three or four wash/crush stations).
  • Made in USA: All parts and components that go into the equipment are made in America meeting all American standards. Made in USA means longer lasting higher quality equipment.

Drum Washer Crusher TRC-7000

Drum Washer Crusher TRC-7000 Configurations

The TRC-7000 model includes an internal recirculation tank system with 120 gallons capacity. You can increase the washing-crushing rate/performance by adding and external tank recirculation system (250, 500 or 1000 gallon capacity)

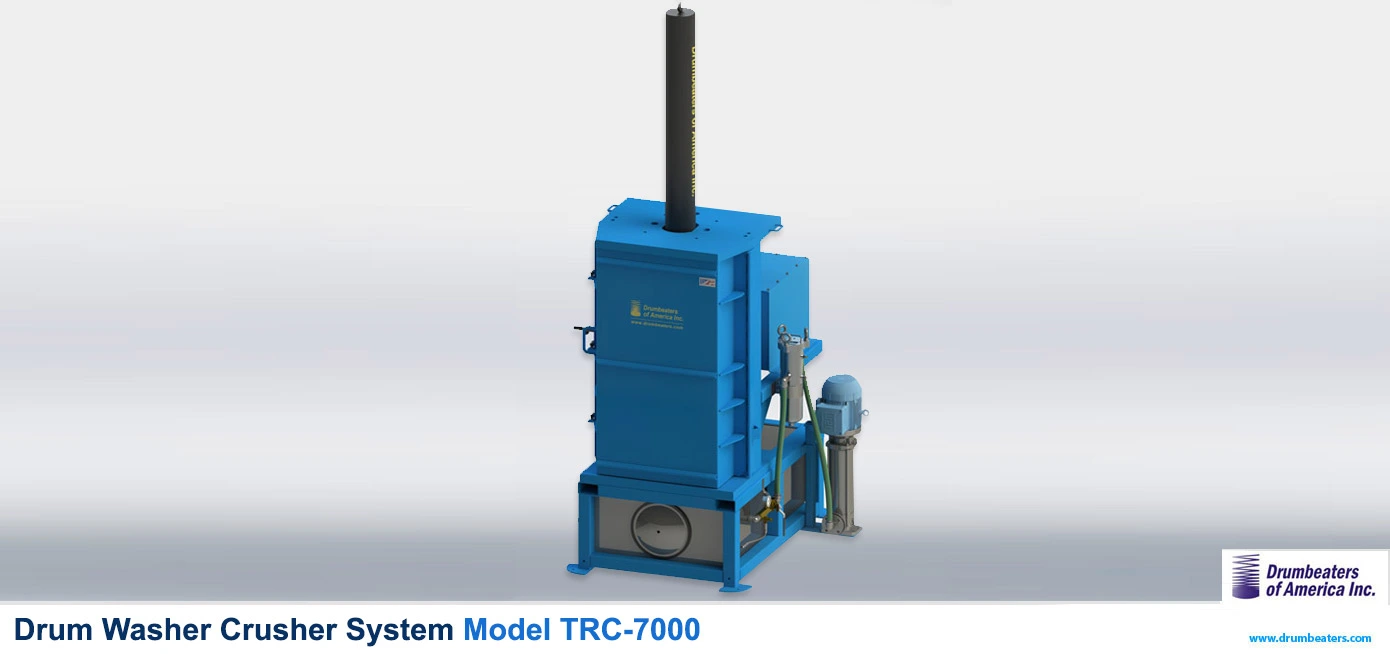

TRC-7000 Model with 120 gal. internal recirculation tank

TRC-7000 Model with 120 gal. internal recirculation tank

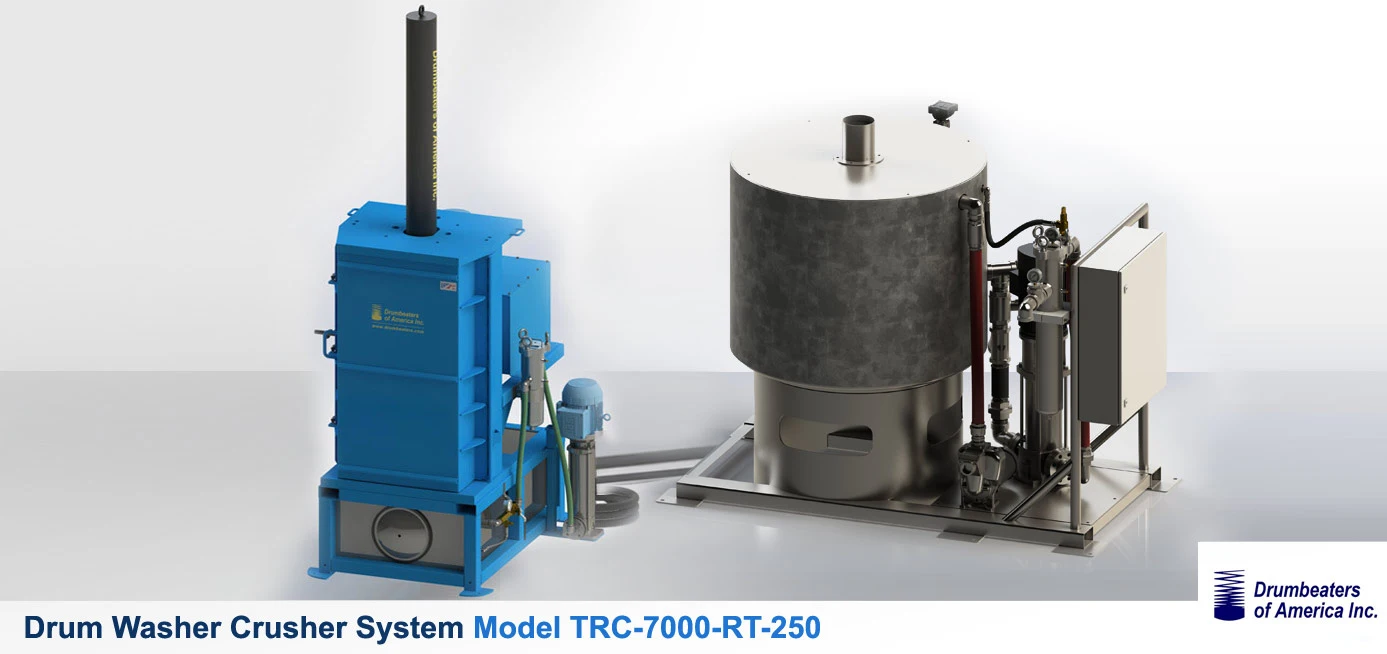

TRC-7000 Model with 250 gal. external recirculation tank

TRC-7000 Model with 250 gal. external recirculation tank

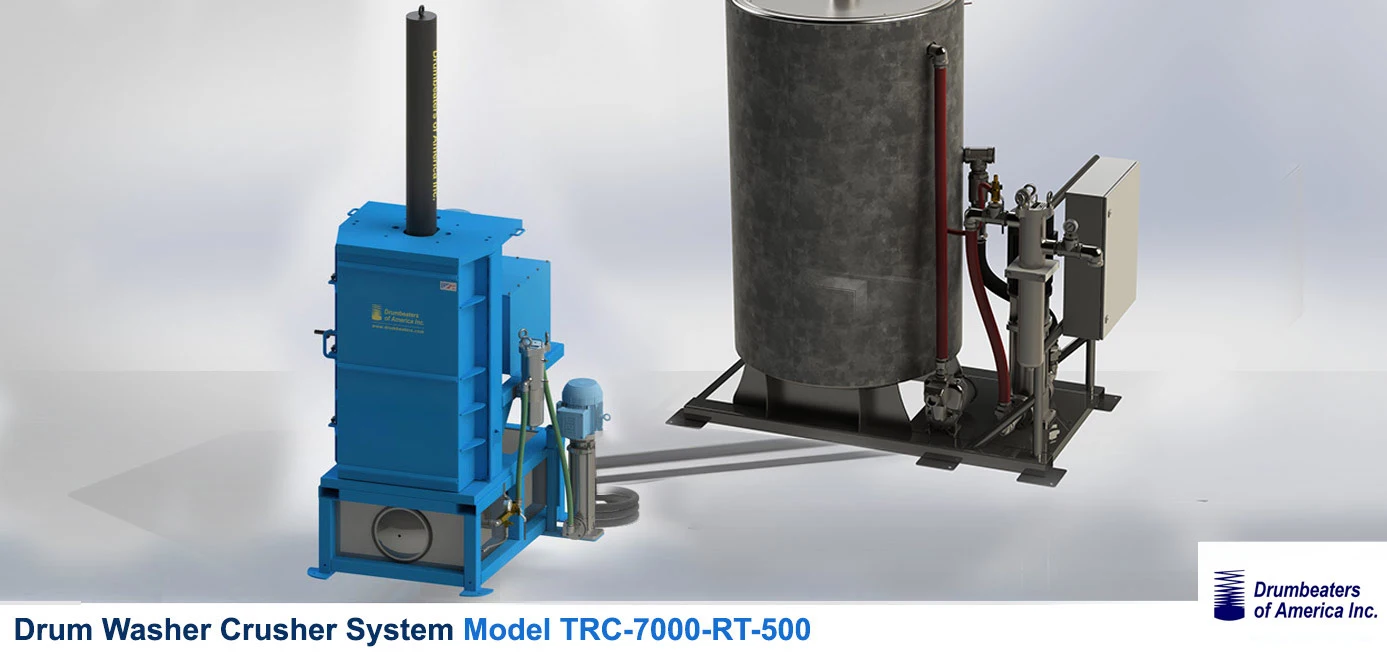

TRC-7000 Model with 500 gal. external recirculation tank

TRC-7000 Model with 500 gal. external recirculation tank

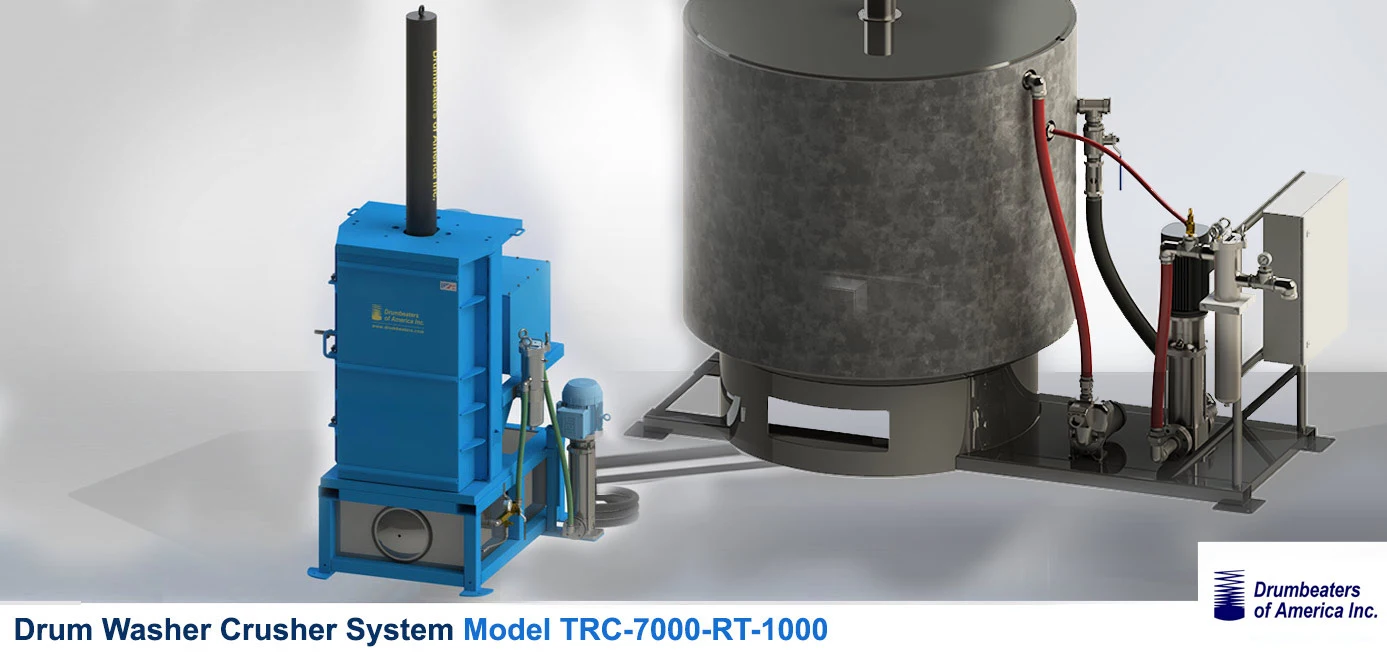

TRC-7000 Model with 1000 gal. external recirculation tank

TRC-7000 Model with 1000 gal. external recirculation tank

Request a Quote


Please submit your specific requirements as type of drums or containers, number of containers processed per hour, type of waste, intended cleaning solution and electrical requirements (Volt & Hz).

In order to receive your inquiry check the following anti spam box:


Our Company is staffed with mechanical and electrical engineers and has a prototype fabrication and machine shop. The final assembly of all products and systems is performed at Drumbeaters' facility located in Elburn, Illinois, USA.

The Drum Washer Crushers are dual purpose systems that are engineered to wash and crush drums automatically in the same chamber


Our Drum Washer Crushers systems will wash & crush a 55 gallon drum down to 2.5" in height in the same chamber, greatly reducing storage space requirements and transport fees.

These systems include an internal recirculation tank system. External recirculation tanks can be added to the systems. Heavy duty construction, all structural components are made with steel.
