Drum Washer Model DW55-IO

The DW55-IO is designed to wash and rinse the interior and exterior of pails and drums sized up to 55 gallon using water, detergent, solvent, or hot water if the electric immersion heater option is selected.

The construction is heavy duty and includes an internal recirculation tank system with 220 gallon reservoir.

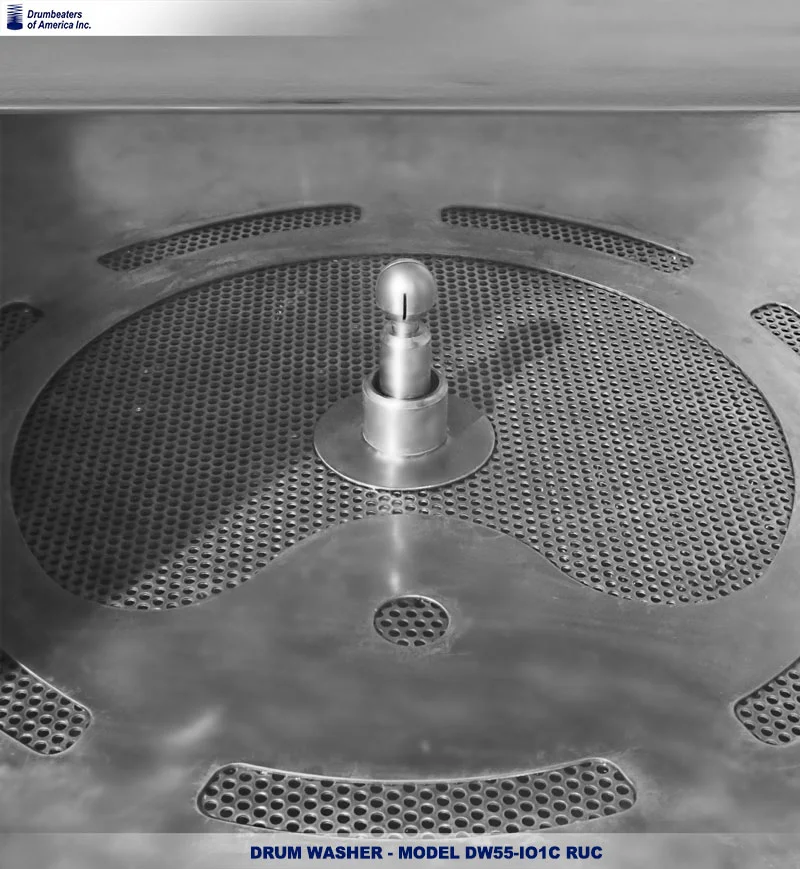

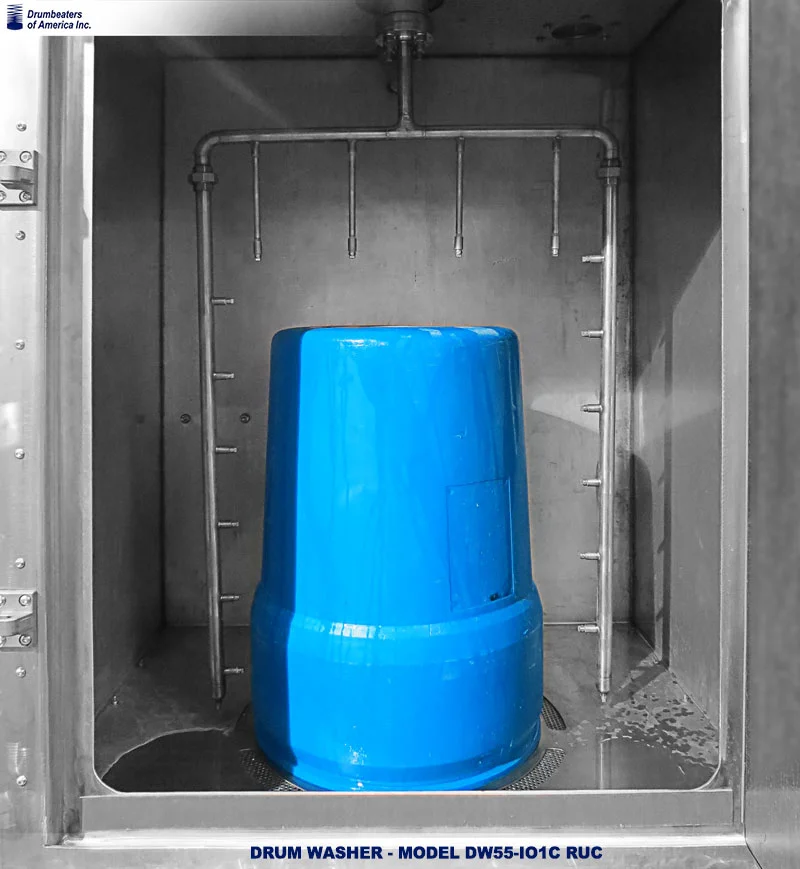

This system uses high speed rotary nozzles. Washing the drums with a high speed rotary nozzles will deliver wash fluid to 100% of the interior and exterior of the drums or containers.

The drum station is protected by a safety system to prevent the operator from activating a station when a drum is removed prior to the wash cycle being finished.

Each washing system may include an external recirculation tank with 250, 500 or 1000 gallon capacity depending of the number of wash station(s).

Frequently Asked Questions & Answers that you need to know when selecting a drum washing system (click here)

Brochure

Standard Features

  • Washes upto 55 gallon drums (steel and plastic)
  • Washes interior & exterior of close top and open top drums
  • Can use water, detergent or solvent
  • Stainless Steel construction
  • Internal Tank Recirculation System (220 gal for one wash station & 440 gal for two wash stations)
  • Fully Adjustable Wash Timer. (1 sec. to 66 hours)
  • Push Button On/Off Controls
  • Stainless Steel Pressure Building Stack Pump
  • Portability with Fork Lift Truck
  • Electrical control box Nema 4 Wash Down
  • Safety features to comply with OSHA

Optional Features

  • Explosion Proof System: When you have a hazardous area
  • High Impact Wash Nozzle
  • Galvanized Finish: Protective coating of zinc to provide corrosion resistance
  • MMF (Multi Media Filtration) System
  • Complete caustic and acid plumbing package
  • External recirculation tank 500 gal capacity (for one wash station)
  • External recirculation tank 1000 gal capacity (for one or two wash stations)
  • Additional wash station (two wash stations)
  • Two (02) 10,000 watt electric immersion heaters for the recirculation tank to provide hot water
  • Special cover to control fumes and/or retain heat if water is heated
  • Oil Recovery Skimmer System for the 1000 gallons tank recirculation system
  • Discharge Pump - Self Priming Pump
  • Rinse Cycle
  • Made in USA: All parts and components that go into the equipment are made in America meeting all American standards. Made in USA means longer lasting higher quality equipment.

Drum Washer DW55-IO Configurations

Each wash station has a station control box containing a start and stop button and an emergency stop button. Each washing system may include an external recirculation tank with 500 or 1000 gallon capacity depending of the number of wash stations.

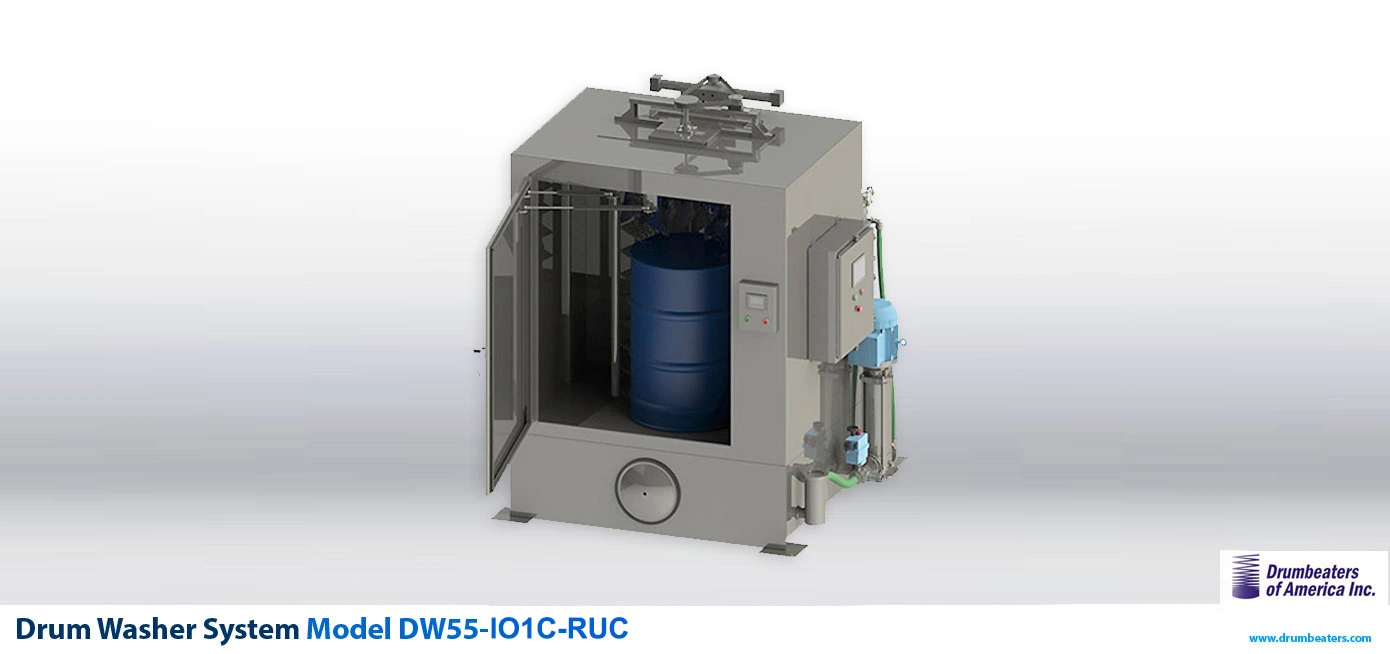

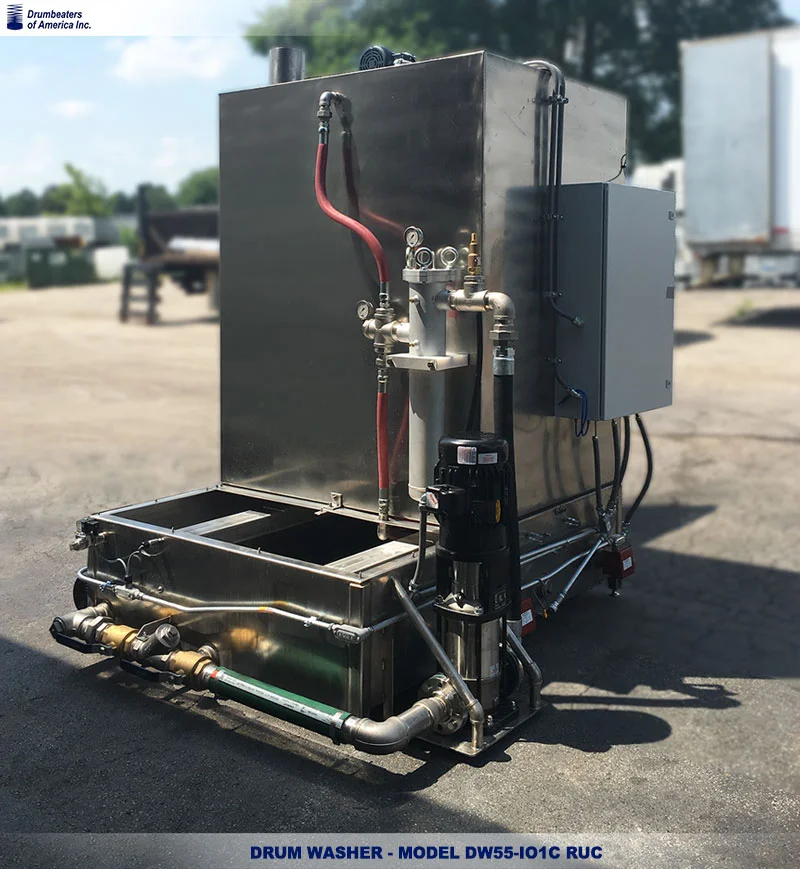

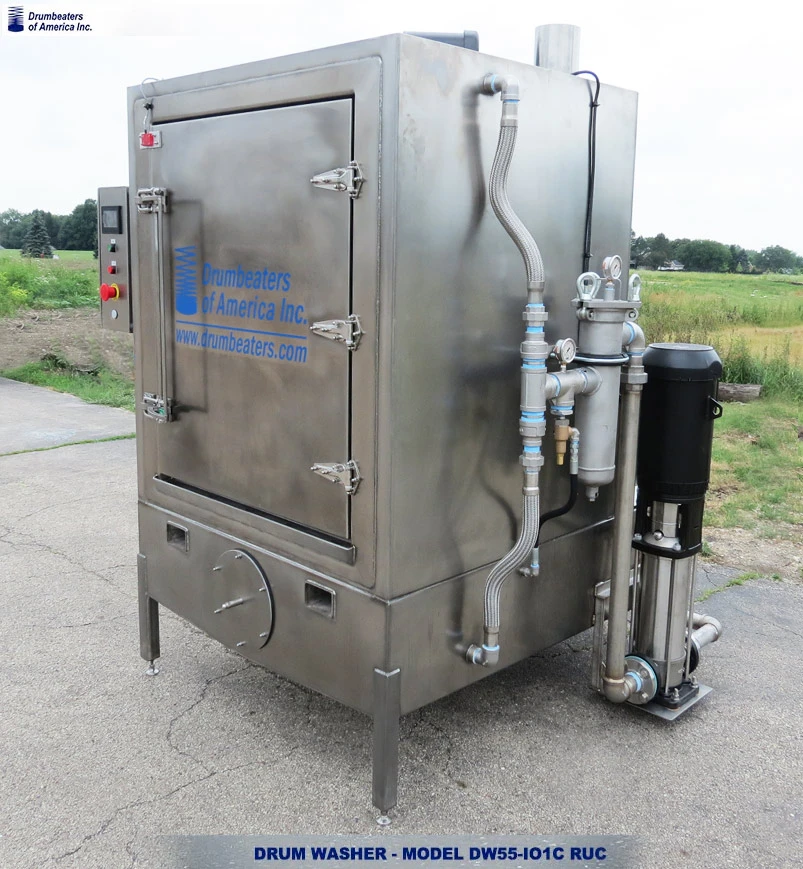

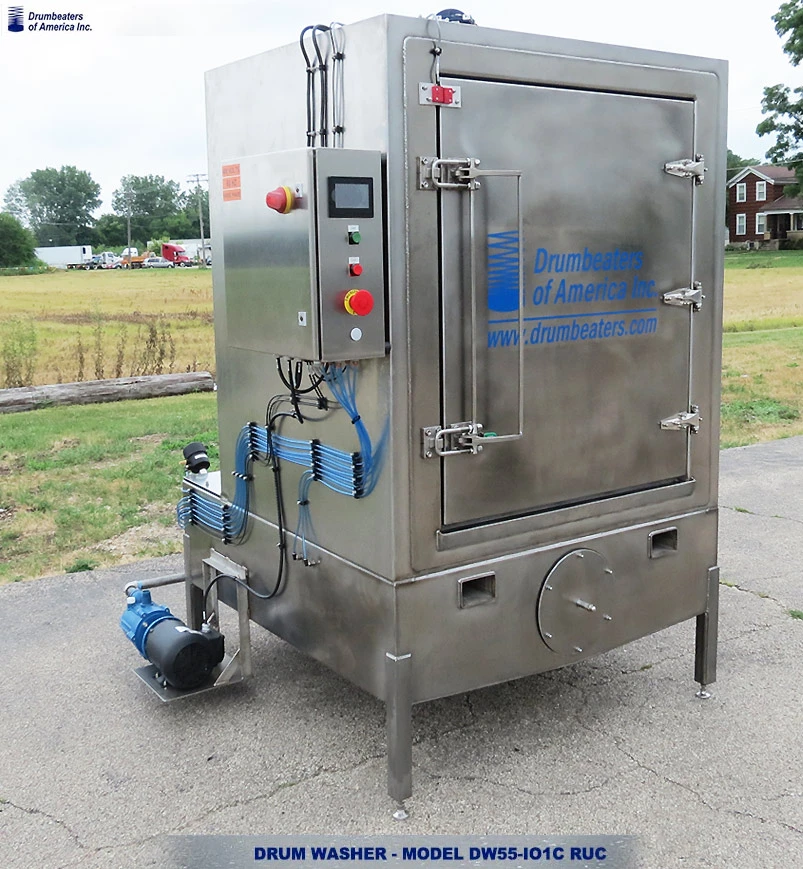

dw55-io1c-ruc

One wash station with 220 gal. internal recirculation reservoir

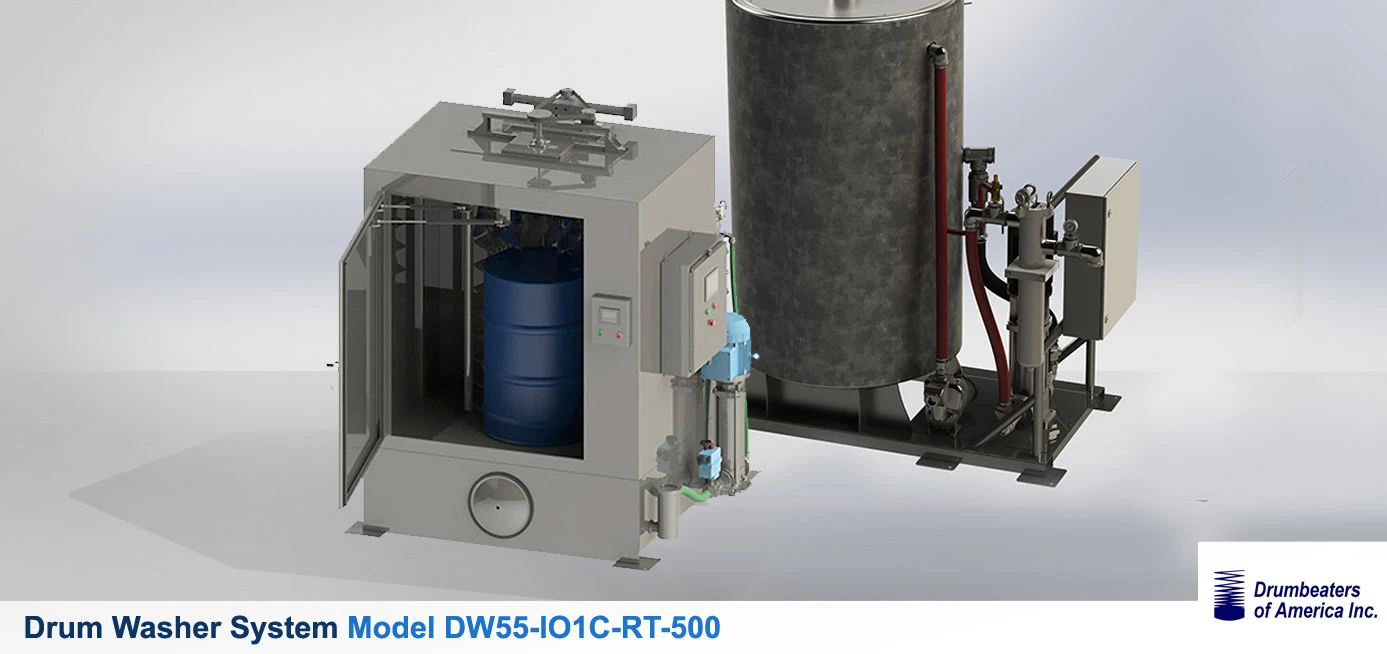

dw55-io1c-rt-500

One wash station with 500 gal. external recirculation tank

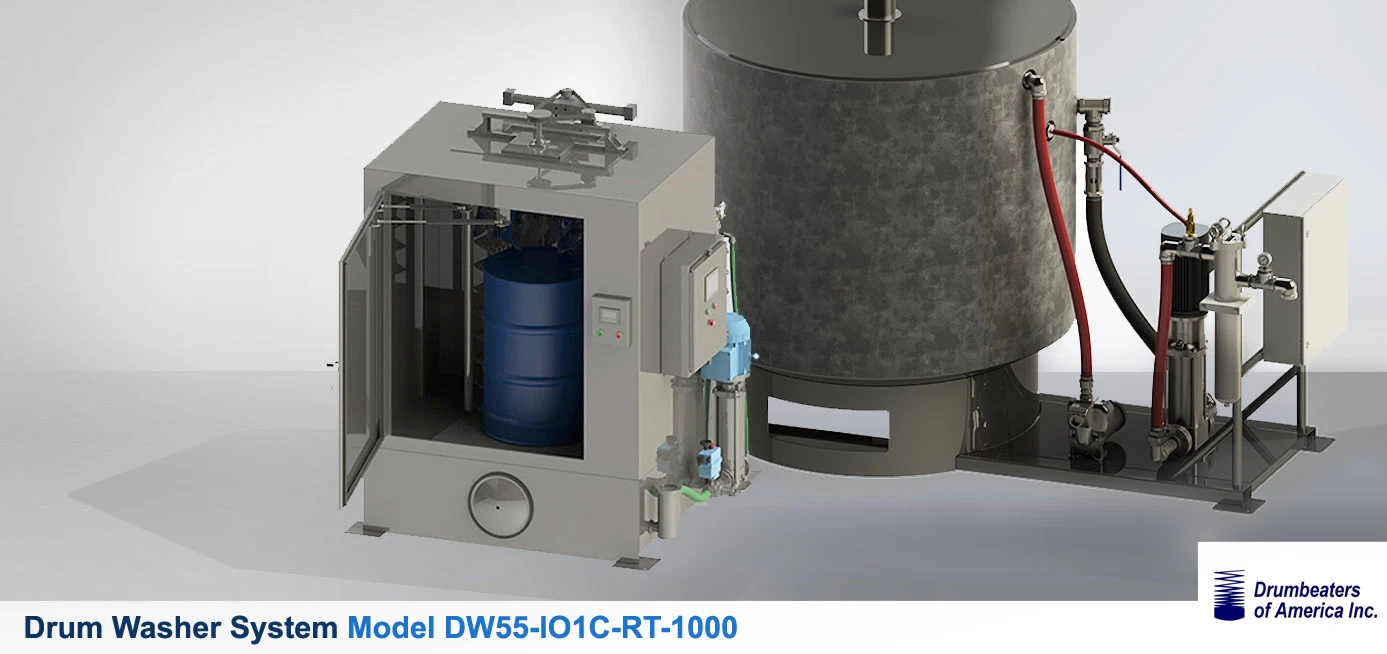

dw55-io1c-rt-1000

One wash station with 1000 gal. external recirculation tank

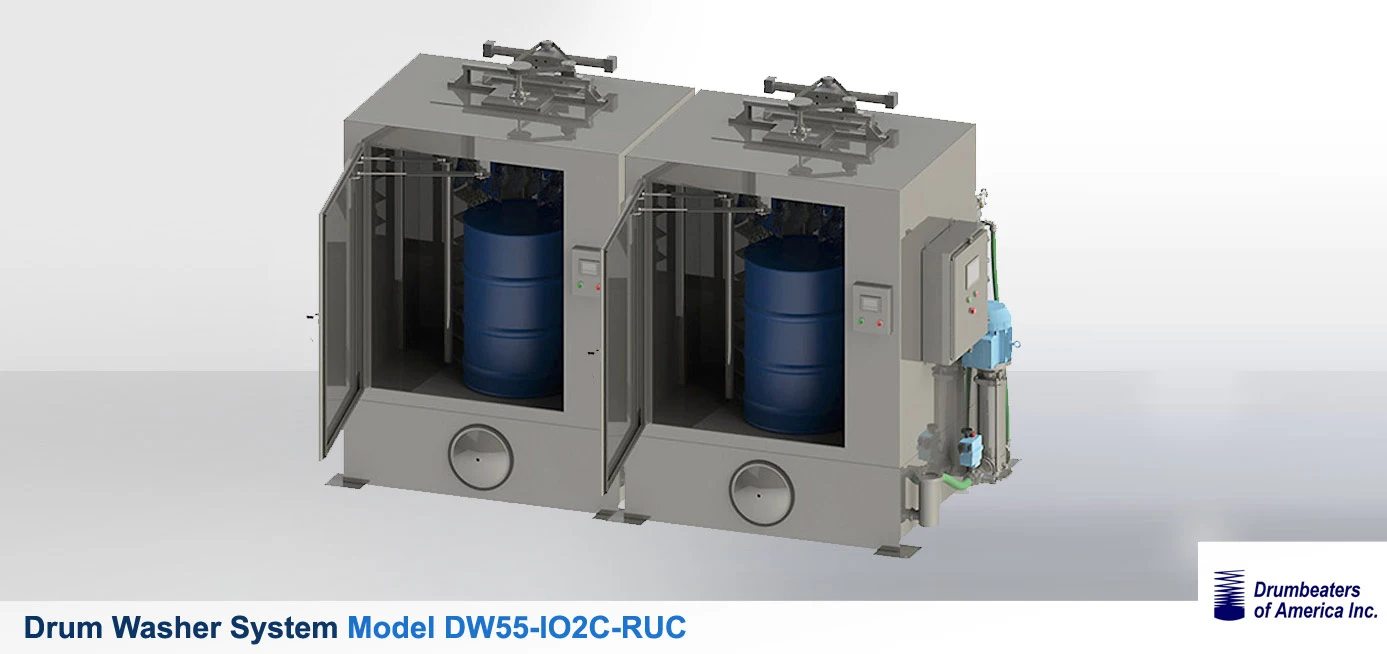

dw55-io2c-ruc

Two wash stations with 440 gal. internal recirculation reservoir

dw55-io2c-rt-1000

Two wash stations with 1000 gal. external recirculation tank

Request a Quote


Please submit your specific requirements as type of drums or containers, number of containers processed per hour, type of waste, intended cleaning solution and electrical requirements (Volt & Hz).
