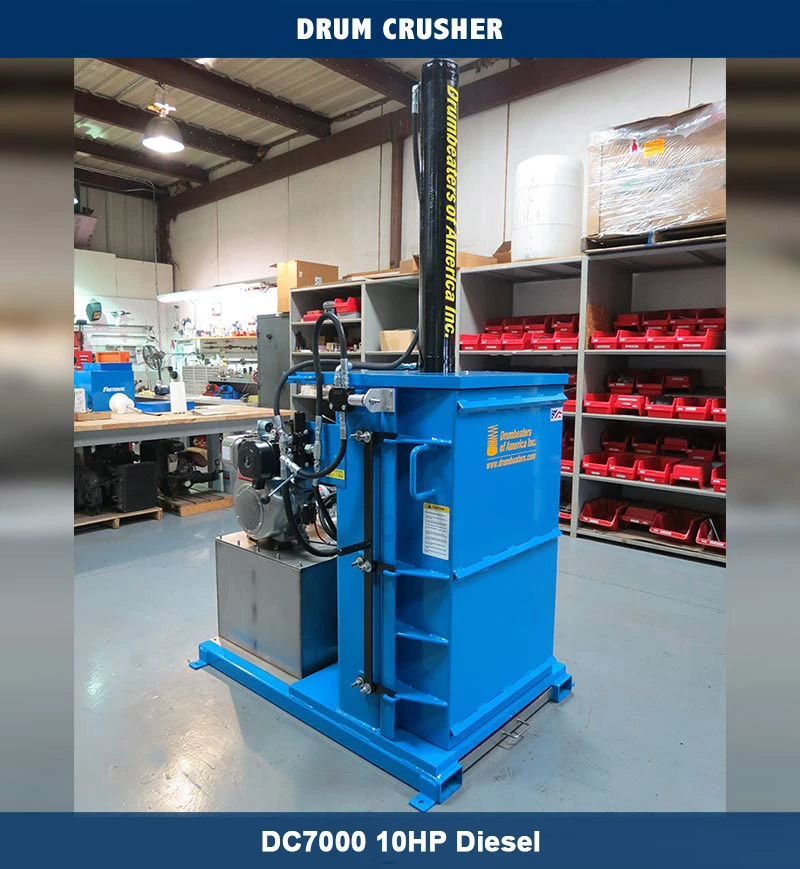

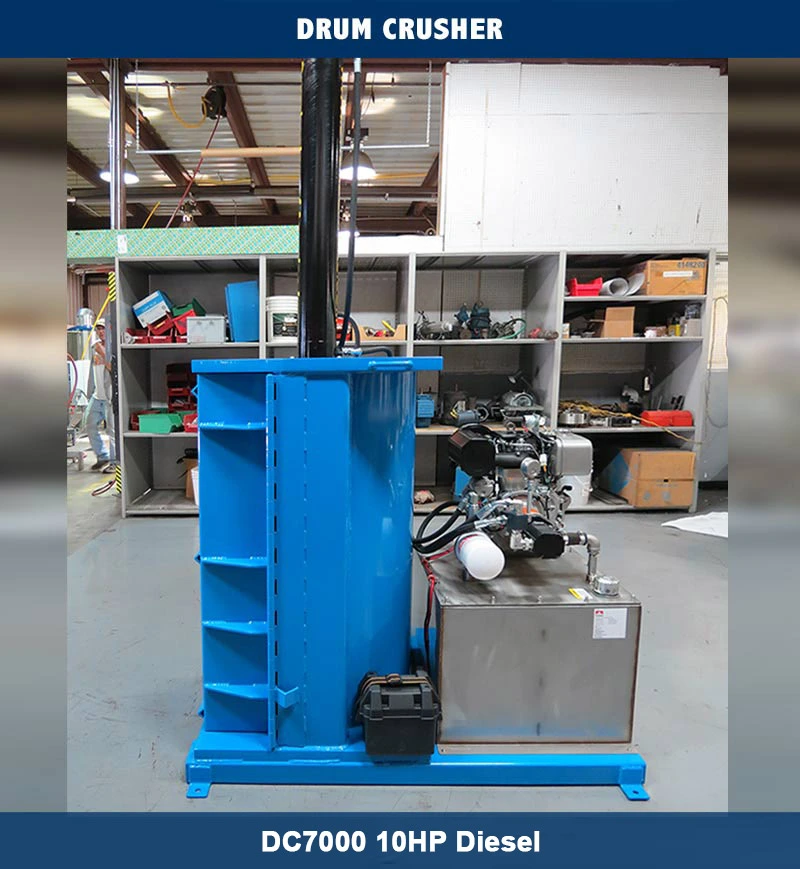

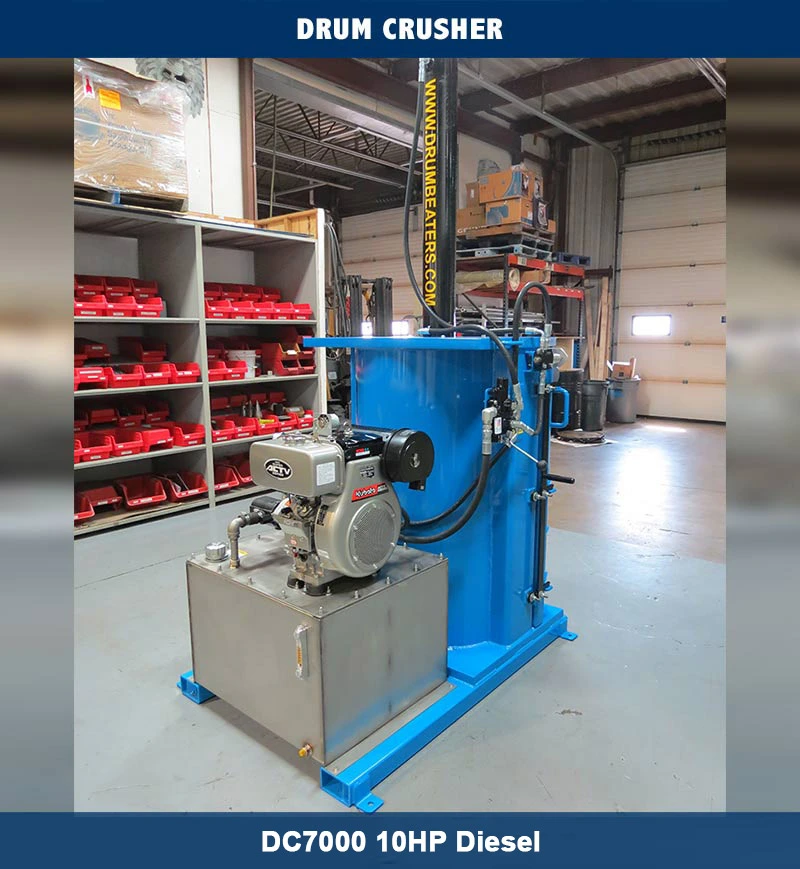

Drum Crusher DC7000-10HP Diesel Heavy Duty

Drum Crusher DC7000-10 Diesel

The DC7000-10 Diesel is a super heavy duty drum crusher system. It is used to crush a large volume of drums continuously. The DC7000-10 Diesel has all the options in a drum crusher that you will need or find. The DC7000-10 Diesel can and will meet all your needs including drum packing, air filtration, explosion proof, one touch operation, and much more. The DC7000-10 Diesel is the result of the past 25 years of being in the drum recycling/disposal business.

The DC7000-10 Diesel is a dual purpose machine. It can be used to compact waste inside of the drum or to crush the empty drum itself. The Model DC7000-10 Diesel will crush a 55 gallon drum down to 3" in height, greatly reducing storage space requirements and transport fees. The unit comes complete with fused electrical controls, hydraulic door safety switch, and an oil sight gauge with temperature indicator. Heavy duty construction, all structural components are made with steel.

Designed, developed and assembled in the USA: All parts and components that go into the equipment are designed and developed meeting all American standards.

Standard Features

• 10 HP Diesel Motor
• Crushing force 70,000 pounds at 2500 psi
• Crushing force 85,000 pounds at 3000 psi
• Crush 55 gallon steel drum down to 2.5"
• Cycle time of 30 seconds
• 60 gallon hydraulic tank

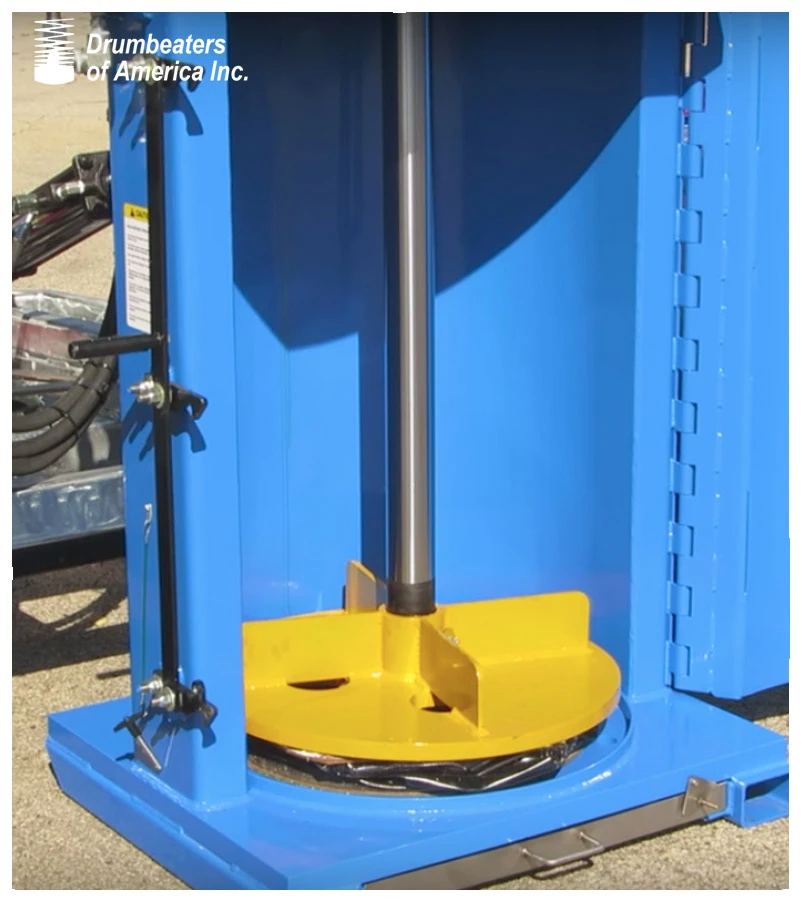

• Compacting inside of drums using a second plate and 15" clear chamber

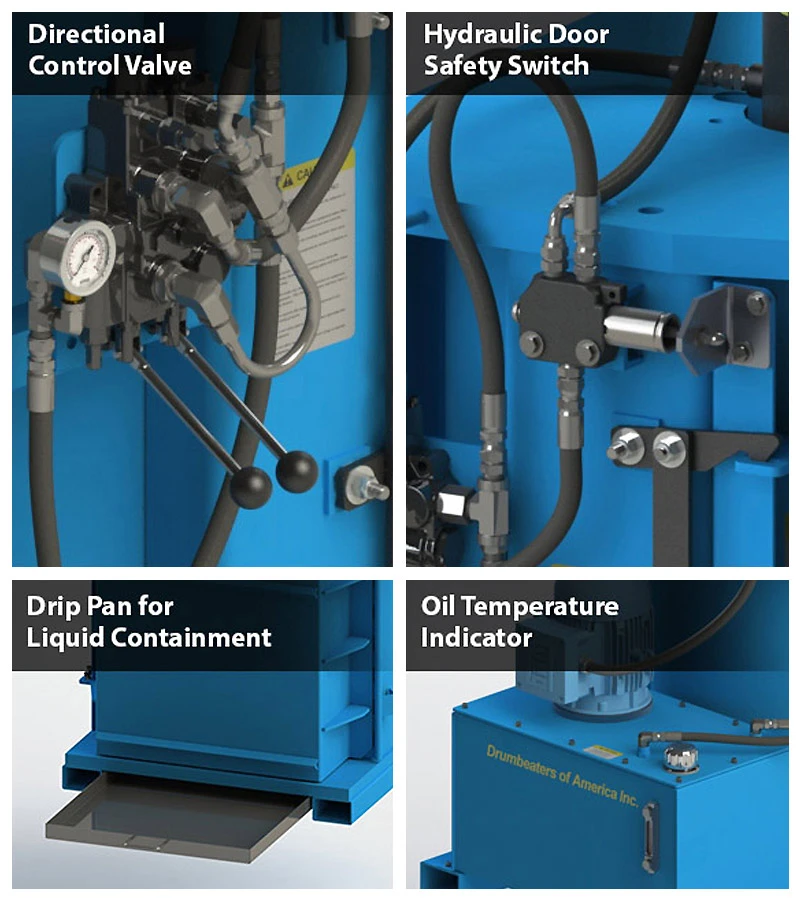

• Drip Pan for Liquid Containment
• Directional Control Valve
• Drum ring locator, keep the drum aligned
• Emergency stop push button and motor starter
• Portability with Fork Lift Truck
• 12 Volt Battery (Included)
• Safety features to comply with OSHA
• Heavy Duty Steel construction

Available Options

• Chamber enlarged for crushing 85 gallon drum
• Dutch Door: This is a door that can open from the top and remain closed on the bottom for packing purposes
• Fluid collection reservoir 30 gallons: Under the crushing chamber to collect any fluids inadvertently not removed prior to crushing the drum
• Automatic drum ejection system: For ejecting the crushed drum out of the chamber
• Automatic drum conveyor system: For moving the crushed drums to a dumpster or external container
• Vent Fan: Heavy-duty Vents Fan. Custom & Std. sizes available
• Hepa Filter: This type of air filter can remove at least 99.97% of airborne particles 0.3 micrometers (µm) in diameter
• Galvanized Finish: Protective coating of zinc to provide corrosion resistance
